YHMK5320 × 70 Precision CNC Gantry Guide Njanji Yopukutira Makina

YHMK5320 × 70 Precision CNC Gantry Guide Njanji Yopukutira Makina

Oyenera ndege zazikulu ndi njanji yowongolera pamwamba-yolondola kwambiri pogaya ndi voliyumu yayikulu yogaya m'magawo opangira zida zamakina, zida zoyezera mafakitale, zoyendera, asitikali apamlengalenga, ndi madera ena ofananira. Pofuna kuthana ndi vuto la kudalira kutengera zinthu kuchokera kunja ndikukwaniritsa kulowetsa m'malo mwapamwamba kwambiri makina opera.

Mapulogalamu Okhazikika Okhazikika

Kufufuza

Olemba luso

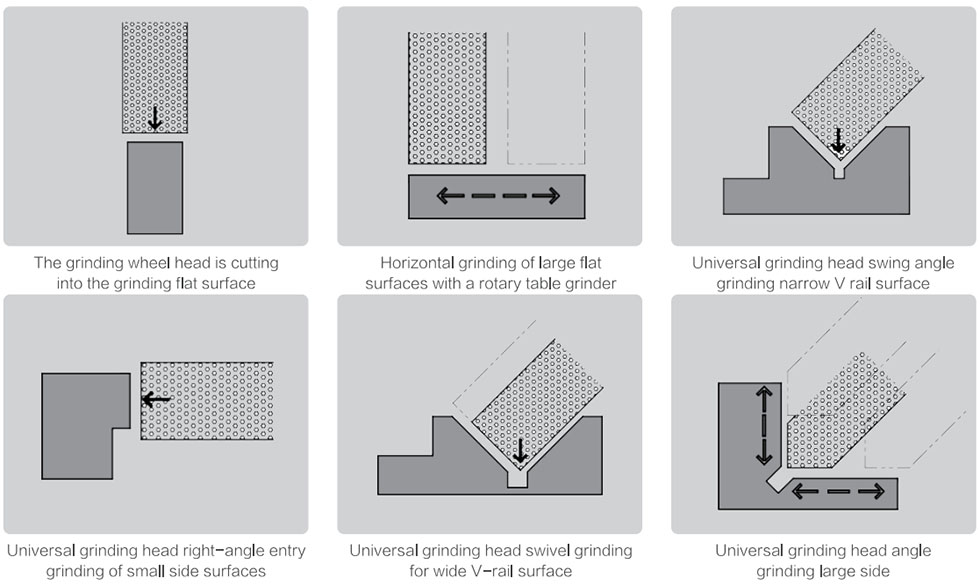

Kugaya Application Schematic

Main Features

1. Ukadaulo wa Hydrostatic umatsimikizira kulondola kwa makina ndi kusungidwa kolondola.

2. Dragon Gate kapangidwe kapangidwe, luso hydrostatic.

3. Mitu yopukutira yopingasa ndi yowongoka, yokhoza kupanga zinthu zambiri nthawi imodzi.

4. Parametric human-computer interaction software, full-Featured CNC package.

5. Online Dynamic Balancing, AE System Amapereka Perfect High-Precision Machining Performance.

6. Tekinoloje yamagetsi yamagetsi ya hydrostatic yosasinthika nthawi zonse.

Magwiridwe

No.	katunduyo		YHMK5320×70
1	CNC ndondomeko	lachitsanzo	Motorola 828D

2		Chiwerengero cha nkhwangwa zolamulidwa nthawi imodzi	3（X/Y/Z）
3	Processing osiyanasiyana	Zolemba malire akupera kutalika	7000mm

4		M'lifupi mwake	2700mm
5		Ulendo wa Y-axis wa spindle yopingasa/yowongoka	3400mm
6		M'lifupi mwa tebulo logwirira ntchito	2000mm
7		Mtunda wautali kwambiri kuchokera pakati pa gudumu lopukutira lopingasa kupita pamwamba pa tebulo logwirira ntchito	≥1700mm
8	Mutu wopukutira wopingasa	Kufotokozera kwa gudumu lopukutira	φ600×100×φ203.2mm

9		Mtunda kuchokera pakati pa gudumu lopera kupita pa tebulo logwirira ntchito	1700mm
10		Kuthamanga mwachangu	1450 rpm
11	Mutu wopukutira wowongoka	Ngodya yozungulira	± 90°（kusintha kwamanja）

12		Kufotokozera kwa gudumu lopukutira	φ400×20-75×φ127mm
13		Mtunda kuchokera ku nkhope yopukutira magudumu kupita ku tebulo logwirira ntchito	≥1400mm
14		Kuthamanga mwachangu	2000 rpm
15	Ntchito ya X-axis yogwira ntchito	Liwiro (hydraulic drive)	5-30m / min

16		Kuchuluka kwa katundu	18000kg
17		Sitiroko yogwira ntchito	7200mm
18	Y-axis feed ya spindle yopingasa/yowongoka	Kuyenda mwachangu	5000 mm / min

19		Chakudya chowonjezera	3-75mm
20		Kudyetsa mosalekeza	0-5000 mm / mphindi
21		Kusasinthika kochepa kwa chakudya chaching'ono	1um
22	Z-axis feed ya spindle yopingasa/yowongoka	Kuyenda mwachangu	500 mm / min

23		Kuthamanga kwakukulu koyima	1150 (spindle yopingasa)/1050 (spindle yopingasa) mm
24		Kusasinthika kochepa kwa chakudya chaching'ono	0.1um
25	Mapangidwe a makina	Utali × Ufupi × Msinkhu	18600 × 7000 × 5800 mm
26	Kulondola kwakukulu	Kuthamanga kwa radial kwa spindle taper yopukusira gudumu	0.003mm

27		Kuwongoka kwa kayendedwe ka nthawi yayitali patebulo logwira ntchito (X-axis)	0.018 / 7000mm
28		Kufanana kwa pamwamba pa tebulo logwirira ntchito ndi kayendetsedwe ka mutu wopera (Y-axis)	0.005 / 1000mm
29		Kuyenda molunjika kwa mutu wopukutira mopingasa (Y-axis) kupita ku kayendedwe ka tebulo logwirira ntchito (X-axis)	0.01 / 500mm
30		Kuyika molondola	Z/W-axis：0.008/500mm
			X-axis: Hydraulic silinda drive, palibe kulondola kwa malo
