YH2M8432F Wopukuta Wambali Pawiri

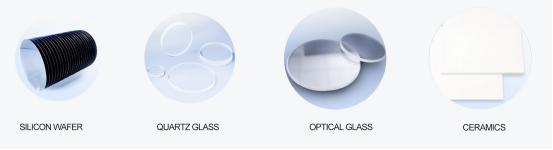

Makinawa amagwiritsidwa ntchito makamaka popera ndi kupukuta mbali ziwiri za zinthu zopangidwa ndi zinthu za semiconductor mongas silicon, germanium, ndi quartz crystal, komanso zinthu zolimba komanso zofooka zomwe sizili zachitsulo monga magalasi owonera ndi zoumbaumba.

chithunzi

Kufufuza

Olemba luso

Main Features

1. Thireyi ya makina, mbale yapansi, ndi shaft yopanda kanthu zimathandizidwa ndi ma bearing olimba kwambiri, olondola kwambiri komanso manja okhazikika, zomwe zimapangitsa kuti thireyi igwire ntchito bwino kwambiri. Chigoba chokhazikika ndi shaft yopanda kanthu zimagwiritsa ntchito kugaya mkati ndi kunja kwa chitoliro.

2. Kukweza Zida Zozungulira: Njira yatsopano yokwezera zida zozungulira zakunja imapereka kulondola kwambiri komanso kusasinthasintha, zomwe zimaletsa kumangirirana. Izi zimawonjezeranso kuyenda bwino kwa zida zozungulira komanso zimathandiza kusintha ma pad opukuta.

3. Planetary Gear Meshing: Njira yatsopano yopangira ma pin meshing imalola kuchotsa mwachangu ndikusintha ma pin payokha pamene ma ring ring kapena sun gear mano awonongeka, zomwe zimapangitsa kuti pasakhale kufunika kosintha ma sun gear onse amkati. Izi zimachepetsa ndalama ndikuwonjezera kusavuta kukonza.
4. Kuti makina a robot azitha kukweza ndi kutsitsa zinthu pogwiritsa ntchito makina a sun gear, makinawo amasonkhanitsa ma sun gear ndi ma lower plate drive components amayendetsedwa ndi ma servo motors. Ma servo motors amenewa, pamodzi ndi silinda yomwe ili mu chipangizo choyimilira ma ring gear, amayika bwino ma tapered locating pins a outer ring gear pogwiritsa ntchito vertical motion, ndipo amaika bwino kwambiri pambuyo pozungulira. Izi zimathandiza kuti ma robot a robot azitha kugwira ntchito bwino akatenga ma planetary gear ndikuyika ndikutsitsa workpiece.

5. Makina operekera madzi a makina: ①Mapampu odziyimira pawokha operekera madzi ndi mapampu olimbikitsa amaonetsetsa kuti madzi opukutira ali okhazikika bwino komanso opanda dothi. Mapaipi onse operekera madzi ndi zolumikizira zimapangidwa ndi chitsulo chosapanga dzimbiri, ndipo mapaipi amapangidwa ndi mapayipi achitsulo osinthasintha. Chimbudzi choyeretsera madzi chimagwiritsa ntchito kapangidwe kotsekedwa, ndi mapaipi otulutsira madzi okwana 40 olumikizidwa ku doko lapamwamba la mbale, kuonetsetsa kuti madzi opukutira amayenda mofanana komanso akuyenda bwino. ②Makina operekera madzi (thanki yosungira madzi opukutira) ali ndi ntchito yozizira. Ogwiritsa ntchito amatha kulumikiza madzi ozizira (kutsegula chitoliro m'mimba mwake: Φ12) ngati pakufunika. Kutentha kwa madzi ozizira ndi ≤15°C ndipo kuthamanga ndi 2 kg/cm².

Magwiridwe

zinthu	lachitsanzo
Kukula kwa mbale yopukutira	Φ1070xΦ495x45mm
Liwiro la mbale yopukutira pamwamba	2-25r / min
Lower ukupera mbale liwiro	2-50r / min
Liwiro la zida za dzuwa	2-22r / min
Kukwera kwa mbale yapamwamba	450mm
Kukwera kwa gear ya mphete	30mm
Kuthamanga kwakukulu kwa Machining	350kg
Kulekerera kuthamanga kwa nkhope kumapeto kwa mbale yapansi	0.12mm
Kulekerera kwa ma radial runout a giya la mphete	0.25mm
Kulekerera kuthamanga kwa nkhope ya giya la mphete	0.25mm
Kulekerera kwa ma radial runout a gear ya dzuwa	0.15mm
Kulekerera kuthamanga kwa nkhope ya zida za dzuwa	0.15mm
mphamvu chakudya	AC380V ya mawaya asanu a magawo atatu
Mphamvu yonse ya zida	Zamgululi
Miyeso yayikulu ya mayunitsi (L x W x H)	Pafupifupi 1800 × 1500 × 2900mm
Kulemera kwa makina onse	Pafupifupi 3500kg
